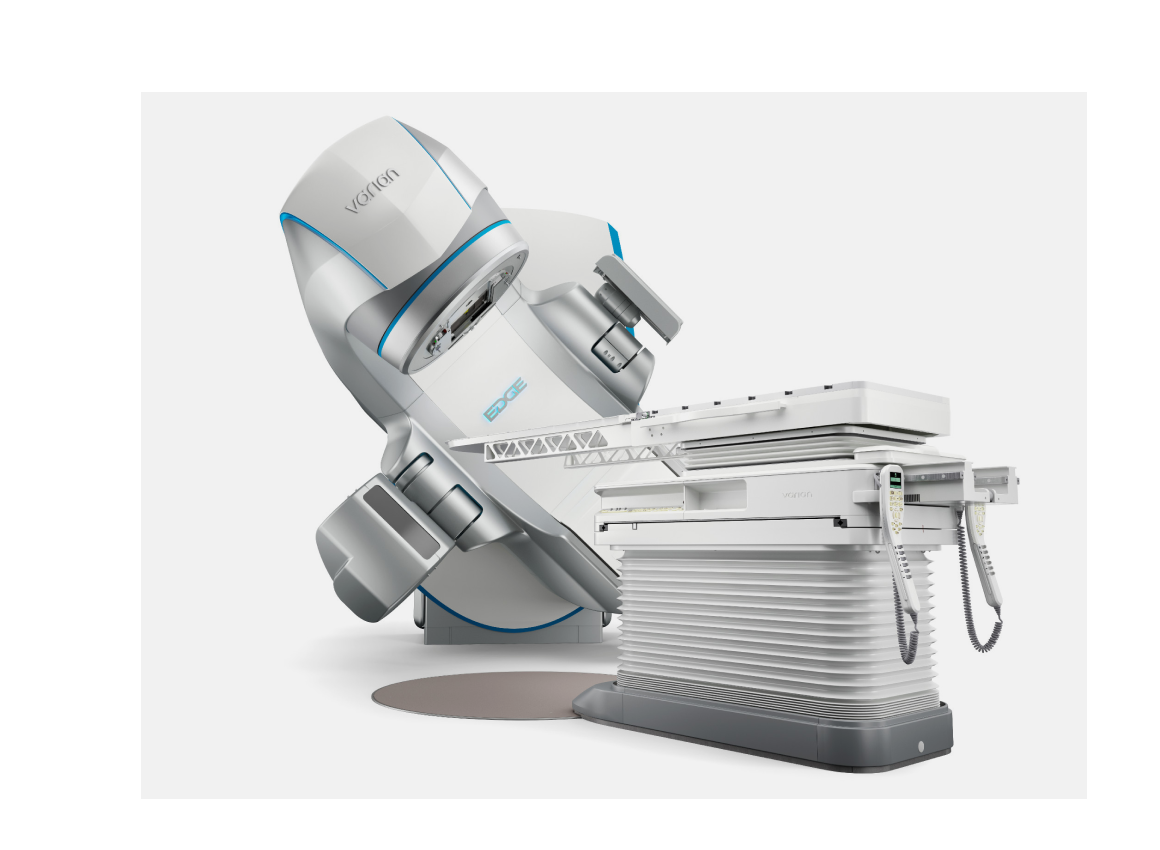

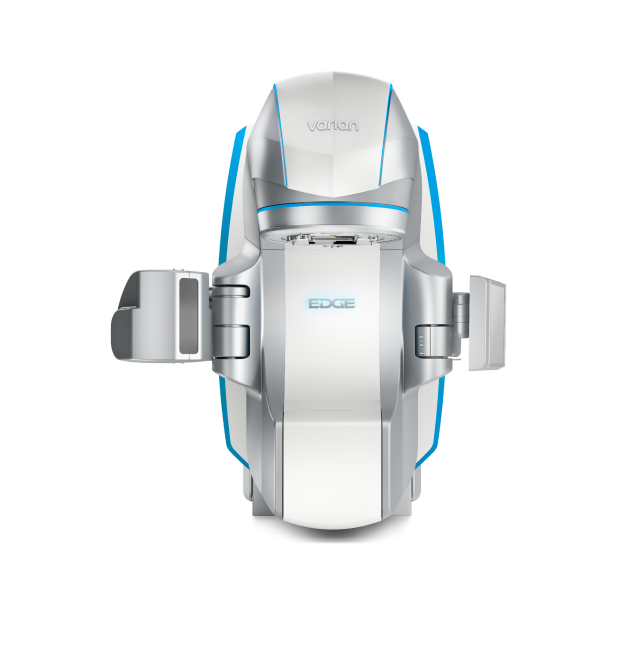

Edge® radiosurgery system
The specialized solution for stereotactic radiotherapy and radiosurgery for any localization. The Edge radiosurgery system is the quintessential evolution of stereotactic radiosurgery and radiotherapy. Using a synthesis of the most advanced technologies, you can perform non-invasive ablative intra- and extracranial radiosurgical procedures and complement them with precision radiotherapy for a wide range of clinical indications.
-
Accuracy
- High precision isocenter gantry, collimator, and couch.
- Constant precision throughout the entire procedure for a wide range of applications.
- PerfectPitch™ couch with six degrees of freedom.
- Robotic table alignment with smooth isocentric movement in six degrees of freedom.
- High load capacity of up to 200 kg combined with high positioning accuracy.
- HD120™ multileaf collimator.
- Accurate focused dose delivery.
- High-resolution beam shaping with 2.5 mm leaves wide.
-
Versatility
- Allows for an individualized treatment of patients with different diseases using radiosurgical and standard radiotherapy techniques.
- Full range of photon and electron energies as required by the user.
-
Efficiency
- High dose rate irradiation modes up to 2400 MU/minute to deliver high dose therapy in a short period.
- Up to five photon energies.
- 0-8 electron energies, up to two additional electron beams for high dose skin treatment.
- Low energy photon beam at 2.5 MV for high-quality imaging in the therapy beam
PARAMETRES
-
Photon energies
From 4 to 20 MV *
-
Electron energies
From 4 to 22 MeV *
-
Max. dose rate
Up to 600 MU/min **
-
Max dose rate using FFF
Up to 2400 MЕ/ min
-
Treatment delivery modes and methods
3D CRT, IGRT, IMRT, RapidArc® treatment, HyperArc® * high definition radiotherapy, SRS*, SBRT*, Electrons Dynamic Conformal Arc Therapy, TBI, TBE
-
MLC
HD120 MLC
-
Treatment couch
PerfectPitch couch with six degrees of freedom
-
Imaging systems
- portal imaging - kV imaging system for 2D, 3D and 4D imaging, including iterative CBCT reconstruction algorithm*
* Optional
**MU - monitor units

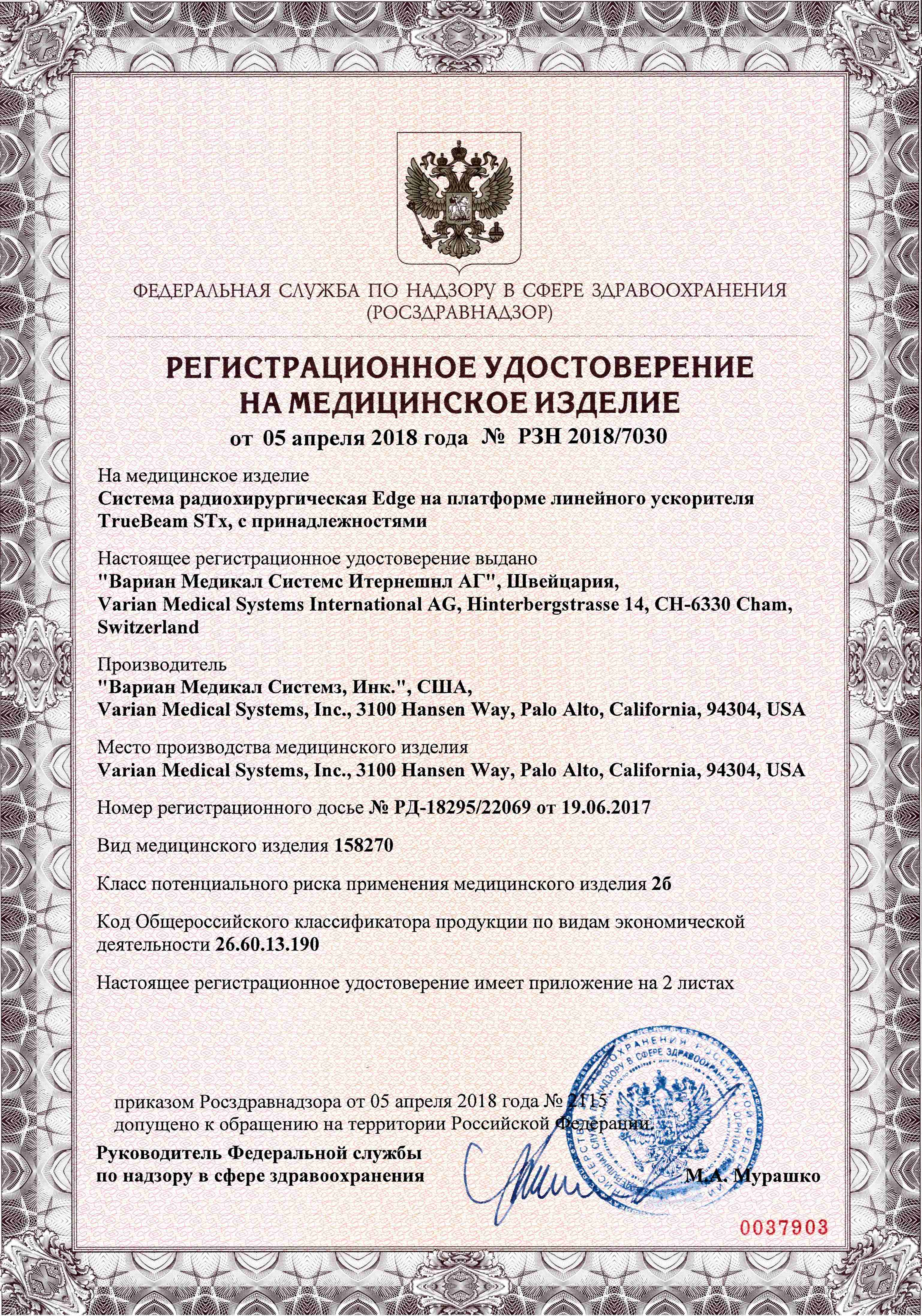

Registration certificates
